Secondary Air Injection Pump Motor -V101-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different variant/trim than selected.

-- Remove the noise insulation. Refer to OVERVIEW - NOISE INSULATION .

-- Press the release -arrows- and remove the lines -1- from the Secondary Air Injection Pump Motor -V101- -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

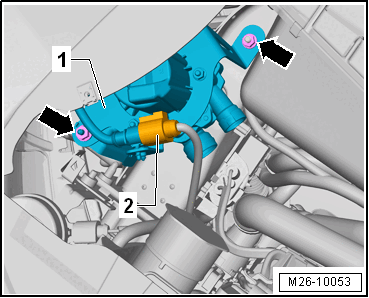

-- Disconnect the connector -2- from the Secondary Air Injection Pump Motor -V101-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the nuts -arrows- and the Secondary Air Injection Pump Motor -V101- -1- with the bracket.
