Exhaust System, Installing Without Tension

Procedure

• Align the exhaust system when cold.

-- Loosen the threaded connections for the front clamping sleeve -arrow-.

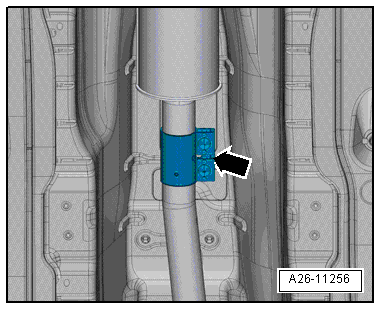

Fig 1: Locating Clamping Sleeve Screws

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Push the exhaust system far enough forward until the pretension on the retaining loops at the exhaust pipe -a- = 5 mm.

Fig 2: Identifying Tail Pipe Aligning

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install the front clamping sleeve. Refer to INSTALLATION POSITION FOR FRONT CLAMPING SLEEVE .

Tail Pipes, Aligning

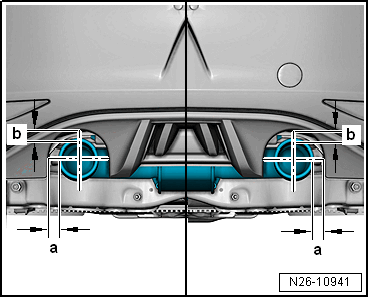

Fig 3: Aligning Exhaust System

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Align the rear muffler so that the distance -a and b- between the bumper opening and the tail pipes is the same.

Vehicles with One Tail Pipe

Fig 4: Vehicles with One Tail Pipe

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Align the rear muffler, so that the distance it is even between the bumper and the tail pipes.

All Vehicles

-- Loosen the rear muffler to align the tail pipes.

Tightening Specifications

• Refer to OVERVIEW - EMISSIONS CONTROL SYSTEM
• Refer to OVERVIEW - MUFFLER
