Turbocharger, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

-- Drain the coolant. Refer to COOLANT, DRAINING AND FILLING .

-- Remove the front exhaust pipe with catalytic converter. Refer to CATALYTIC CONVERTER, REMOVING AND INSTALLING .

-- Remove the air filter housing with the air guide pipe to the turbocharger. Refer to AIR FILTER HOUSING, REMOVING AND INSTALLING .

-- Loosen the hose clamp -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolt -1- and then remove the air guide pipe from the turbocharger.

-- Remove the coolant hose -arrow-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

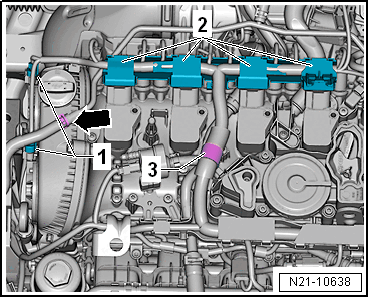

-- Disconnect the connectors -1 and 2-. Open the bracket -3-.

-- If applicable, remove the bolt -1- for the ground cable. Remove the coolant hose -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

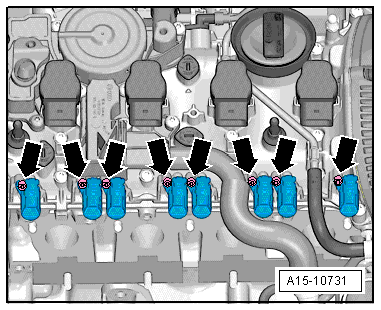

-- Remove the available connectors -arrows-.

-- Release the catch in direction of -arrow- and remove the wiring duct -4- upward from the bracket.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolts -1, 2 and 3-. Pivot the coolant pipe to the side.

-- Remove the Oxygen Sensor 1 before Catalytic Converter -GX10-. Refer to Oxygen Sensor 1 before Catalytic Converter -GX10-, REMOVING AND INSTALLING .

-- Remove the cam adjustment actuators -arrows-.

Fig 1: Identifying Camshaft Adjuster Actuators

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the ignition coils with power output stages. Refer to IGNITION COILS WITH POWER OUTPUT STAGES, REMOVING AND INSTALLING .

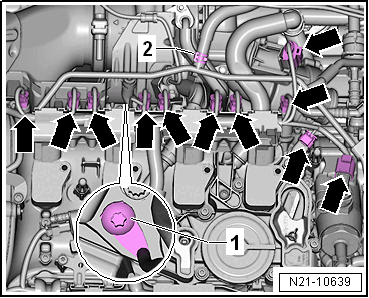

-- Remove the bolts -arrows- and nut -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the heat shield -2-.

-- Remove the bolt -1-. Only loosen the bolt -3-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the turbocharger bracket -2-.

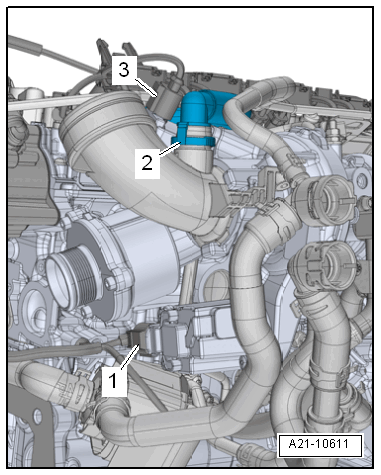

-- Disconnect the connectors -1 and 3-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

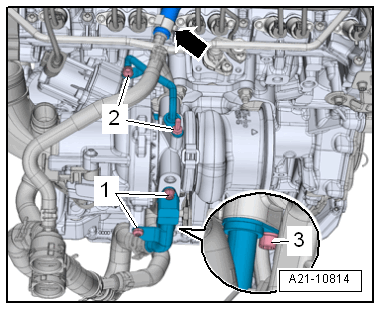

-- Remove the bolts -1- and then remove the connections.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolts -2 and 3- and remove the oil supply line and oil return line.

-- Open the hose clamp -arrow-.

NOTE:

The following work step is necessary to achieve some more room between the cylinder head and the bulkhead.

-- Remove the bolts -1, 2 and 3- and remove the pendulum support.

Fig 2: Identifying Bolts

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Pull the engine approximately 20 mm toward the rear using the : T10038 .

Fig 3: Identifying Engine Pulled Toward Rear Using Tensioning Strap T10038

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the nuts -arrows-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the turbocharger from the cylinder head and pry out upward.
