Overview - Charge Air System

WARNING: This page is about a different variant/trim than selected.

NOTE:

Assembly of screw-type clamps for the charge air hose connections. Refer to OVERVIEW - CHARGE AIR HOSE CONNECTIONS .

Before testing or performing a repair, check all air guide pipes and hoses and all vacuum lines for leaks and secure seating.

Follow the guidelines for clean working conditions. Refer to GUIDELINES FOR CLEAN WORKING CONDITIONS .

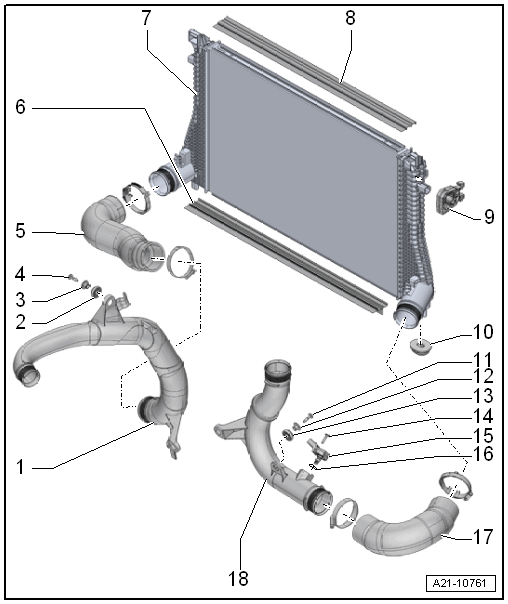

Fig 1: Exploded View Of Charge Air System

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Air Duct Pipe
- Removing and installing. Refer to AIR DUCT PIPE, REMOVING AND INSTALLING .
Grommet
Spacer Sleeve
Bolt
- 7 Nm
Air Duct Hose
- Installing. Refer to OVERVIEW - CHARGE AIR HOSE CONNECTIONS .
Air Duct
Charge Air Cooler
- Removing and installing. Refer to CHARGE AIR COOLER, REMOVING AND INSTALLING .
Air Duct
Rubber Bushing
- For the charge air cooler
Rubber Bushing
- For the charge air cooler
Bolt
- 7 Nm
Spacer Sleeve
Grommet
Bolt
- 5 Nm
Charge Air Pressure Sensor -G31-
- Removing and installing. Refer to Charge Air Pressure Sensor -G31-, REMOVING AND INSTALLING .
O-Ring
- Replace after removing.
Air Duct Hose
- Installing. Refer to OVERVIEW - CHARGE AIR HOSE CONNECTIONS .
Air Duct Pipe
- Removing and installing. Refer to AIR DUCT PIPE FROM CHARGE AIR COOLER TO INTAKE MANIFOLD, REMOVING AND INSTALLING .
