Charge Air Pressure Sensor -G31-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different variant/trim than selected.

-- Remove the noise insulation. Refer to OVERVIEW - NOISE INSULATION .

-- Disconnect the connector -2-.

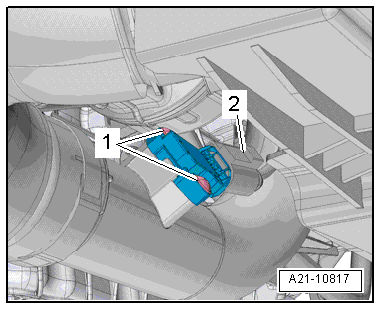

Fig 1: Component Location Charge Air Pressure Sensor -G31-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolts -1- and remove the Charge Air Pressure Sensor -G31- from the air duct pipe.
