Overview - Auxiliary Radiator

WARNING: This page is about a different variant/trim than selected.

NOTE:

Depending on the version, vehicles with a DSG transmission have an auxiliary radiator installed on the front right side.

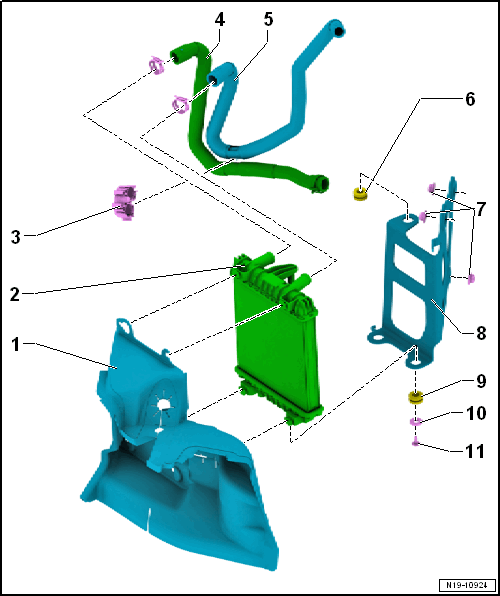

Fig 1: Exploded View Of Auxiliary Cooler

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Air Duct
Auxiliary Radiator
- Removing and installing. Refer to AUXILIARY RADIATOR, REMOVING AND INSTALLING .
Hose Bracket
Coolant Hose
- Return
Coolant Hose
- Supply
Radiator Mount
- Upper
Nuts
- 9 Nm
Bracket
- For auxiliary radiator
Radiator Mount
- Lower
Backing Plate
Bolt
- 3.5 Nm
