Auxiliary Radiator, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

-- Remove the right front wheel. Refer to WHEEL, CHANGING .

-- Remove the noise insulation. Refer to OVERVIEW - NOISE INSULATION .

-- Remove the right front wheel housing liner. Refer to WHEEL HOUSING LINER .

-- Remove the front bumper cover. Refer to FRONT BUMPER COVER, REMOVING AND INSTALLING .

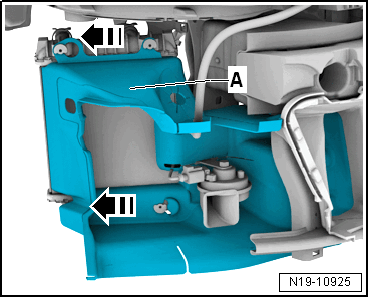

-- Remove the air guide -A- in the direction of the -arrow- from the auxiliary radiator.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

NOTE:

Place a cloth underneath to catch any escaping coolant.

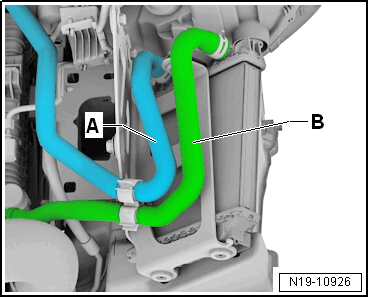

-- Clamp off the coolant hoses -A and B- with :3094 . Open the spring clamps and remove the hoses from the auxiliary radiator.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

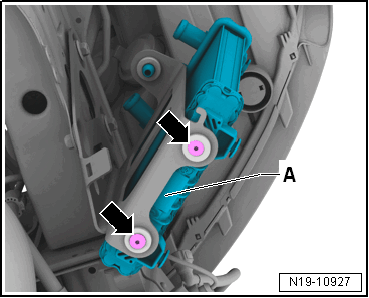

-- Remove the bolts -arrows-. Remove the auxiliary radiator -A- upward from the bracket.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
