Transmission Coolant Valve -N488-, REMOVING AND INSTALLING, VEHICLES WITH AUTOMATIC TRANSMISSION: Removing

WARNING: This page is about a different variant/trim than selected.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the air filter housing. Refer to AIR FILTER HOUSING, REMOVING AND INSTALLING .

-- Disconnect the battery. Refer to BATTERY, DISCONNECTING AND CONNECTING .

-- Engine compartment battery: remove the battery tray -1-. Refer to BATTERY TRAY, REMOVING AND INSTALLING .

-- Luggage compartment battery: remove the air filter housing mount.

-- Disconnect the connector -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

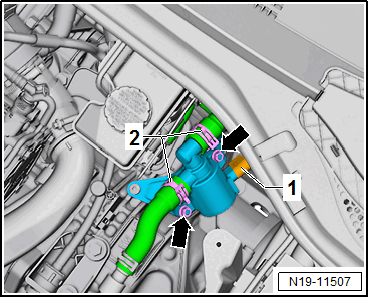

-- Clamp off the coolant hoses at the Transmission Coolant Valve -N488- using the :3094 .

-- Loosen the clamps -2- and remove the coolant hoses.

-- Remove the nuts -arrows- and then remove the Transmission Coolant Valve -N488-.
