OVERVIEW - Transmission Fluid Cooling Pump -V478-

WARNING: This page is about a different variant/trim than selected.
NOTE:

The Transmission Fluid Cooling Pump -V478- is not installed in all vehicles.

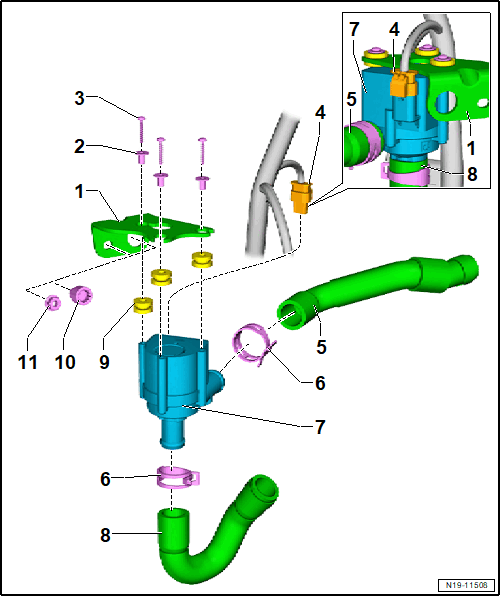

Fig 1: Exploded View Of Transmission Fluid Cooling Pump -V478-
GWWN19-11508Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Bracket
    • For the Transmission Fluid Cooling Pump -V478-
  2. Sleeve
  3. Bolt
    • 5 Nm
  4. Connector
  5. Coolant Hose
  6. Spring Clamp
  7. Transmission Fluid Cooling Pump -V478-
    • Component location: under the Engine Temperature Control Actuator -N493-
    • To remove, remove the charge air pipe between the throttle valve control module and the charge air cooler
  8. Coolant Hose
  9. Rubber Bushing
  10. Bolt
    • 20 Nm
  11. Nut
    • 8 Nm
