OVERVIEW - Transmission Coolant Valve -N488-, VEHICLES WITH 7-SPEED DSG® TRANSMISSION

WARNING: This page is about a different variant/trim than selected.

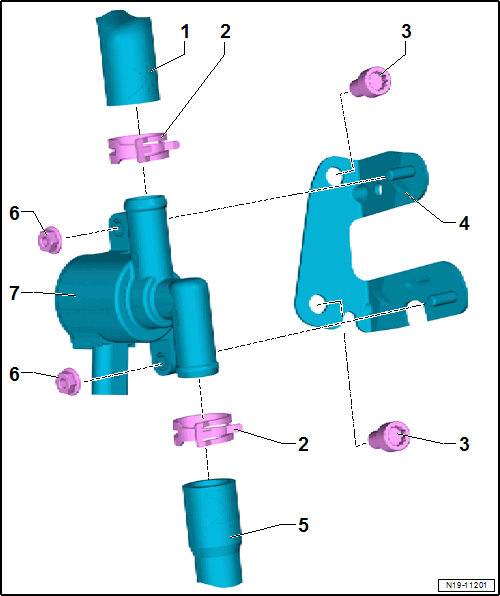

Fig 1: Overview - Transmission Coolant Valve -N488-, Vehicles With 7-Speed DSG® Transmission

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Coolant Hose
Hose Clamp
Bolts
- 25 Nm
Bracket
- For the Transmission Coolant Valve -N488-
Coolant Hose
Nuts
- 9 Nm
Transmission Coolant Valve -N488-
- Removing and installing. Refer to Transmission Coolant Valve -N488-, REMOVING AND INSTALLING, VEHICLES WITH 7-SPEED DSG .
