OVERVIEW - Heater Support Pump -V488-, Coolant Shut-Off Valve -N82-

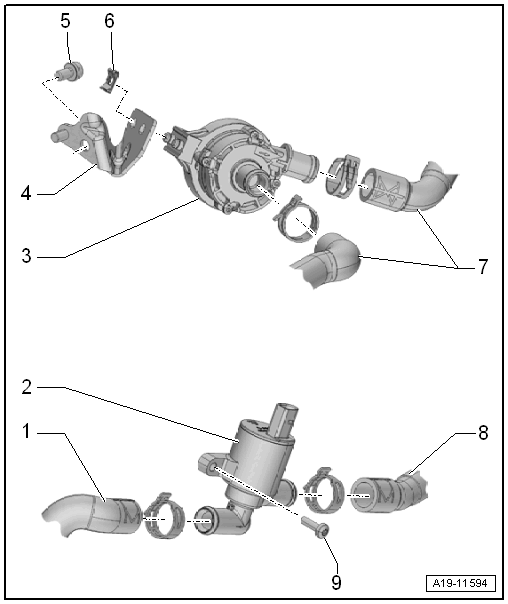

Fig 1: Exploded View Of Electric Coolant Pump

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Coolant Hose
2. Coolant Shut-Off Valve -N82-
   • Removing and installing. Refer to Coolant Shut-Off Valve -N82-, REMOVING AND INSTALLING .
3. Heater Support Pump -V488-
   • With bracket
   • Depending on the version there can be slight differences.
   • Removing and installing. Refer to Heater Support Pump -V488-, REMOVING AND INSTALLING .
4. Bracket
   • For the Heater Support Pump -V488-
5. Bolt
   • 20 Nm
6. Clip
7. Coolant Hoses
8. Coolant Hose
9. Bolt
   • 9 Nm
