Engine Temperature Control Actuator -N493-, REMOVING AND INSTALLING: Removing

-- Remove the coolant pump. Refer to COOLANT PUMP, REMOVING AND INSTALLING .

-- Remove the Throttle Valve Control Module -GX3-. Refer to THROTTLE VALVE CONTROL MODULE -GX3-, REMOVING AND INSTALLING .

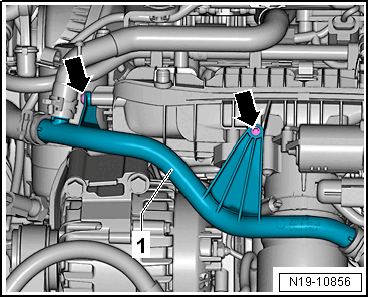

-- Remove the coolant pipe from the intake manifold -arrows-.

Fig 1: Locating Air Guide Pipe Bolts

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Lift the clamp -1- and remove the coolant hoses.

Fig 2: Identifying Coolant Hose Connectors

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the connector -1- from the Engine Temperature Control Actuator -N493-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolts -1 to 5-.

Fig 3: Engine Temperature Control Actuator Tightening Sequence

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Take the Engine Temperature Control Actuator -N493- off the centering pins and remove it from the engine oil cooler.
