Engine Temperature Control Actuator -N493-, REMOVING AND INSTALLING: Installing

WARNING: This page is about a different variant/trim than selected.

Install in reverse order of removal and Note The Following :

NOTE:

Replace the seals and O-rings.

-- Coat the new O-rings -4- with coolant.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Make sure that both centering pins are installed in the cylinder block if necessary insert.

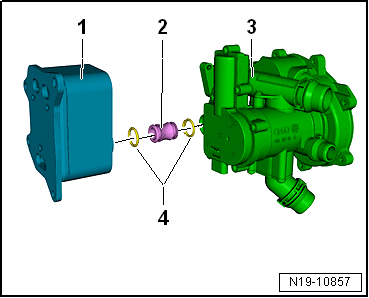

-- Install the connection piece -2- into the engine oil cooler -1-.

-- Push the Engine Temperature Control Actuator -N493- -3- onto the connecting piece and centering pins in the cylinder block.

-- Tighten the bolts for the Engine Temperature Control Actuator -N493-. Refer to Figure.

Fig 1: Engine Temperature Control Actuator Tightening Sequence

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install the coolant pump. Refer to COOLANT PUMP, REMOVING AND INSTALLING .

-- Fill with coolant. Refer to Filling .
