Coolant Shut-Off Valve -N82-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different variant/trim than selected.

-- Remove the air filter housing. Refer to AIR FILTER HOUSING, REMOVING AND INSTALLING .

-- Loosen the hose clamp -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolt -1- and push the left air duct pipe slightly to the left.

-- Disconnect the connector -3- from the Secondary Air Injection Sensor 1 -G609-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the connecting pipe -2- by pressing the locking ring together on both sides, and set it aside.

-- Disconnect the connector -2-.

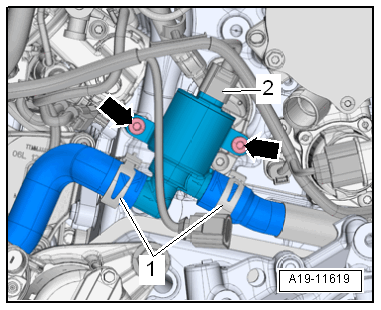

Fig 1: Installed Location Coolant Shut-Off Valve -N82-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Clamp the coolant hoses at the Coolant Shut-Off Valve -N82- using the :3094 .

NOTE:

Place a cleaning cloth underneath to catch any coolant leaking out.

-- Loosen the hose clamps -1- and remove the coolant hoses.

-- Remove the bolt -arrows- and remove the Coolant Shut-Off Valve -N82-.
