Coolant Pump, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

-- Drain the coolant. Refer to COOLANT, DRAINING AND FILLING .

-- Remove the air filter housing. Refer to AIR FILTER HOUSING, REMOVING AND INSTALLING .

-- Free up the wiring harness -1 and 2- from the air guide pipe.

Fig 1: Free Up Wiring Harness From Air Guide Pipe

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Loosen the screw-type clamp -3-.

-- Remove the bolts -arrows-.

-- Loosen the hose clamp -arrow- and remove the charge air hose -A- downward.

Fig 2: Charge Air Hose Clamp Location

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolt -arrow- on the left and right.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the air duct from the lock carrier.

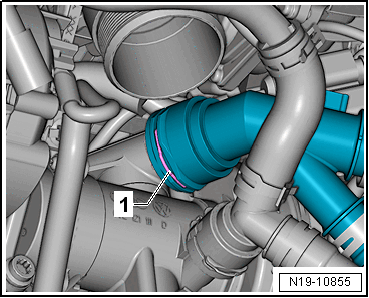

-- Lift the clamp -1-, remove the upper coolant supports and set them aside.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

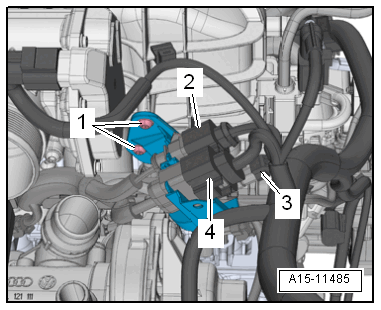

-- Disconnect the connectors -2, 3 and 4-. Remove the bolts -1- and move the bracket to the side.

Fig 3: Knock Sensor Connector Locations

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disconnect the connector -1- from the Oil Pressure Switch -F1- -2-.

Fig 4: Oil Pressure Switch, Level 3 -F447- Installation Position -2-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolts -arrows- and remove the toothed belt guard.

-- Loosen the bolts -1 to 4- and remove the toothed belt from the coolant pump.

Fig 5: Coolant Pump - Tightening Sequence

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolts -1 through 4-, and remove the coolant pump from the Engine Temperature Control Actuator -N493-.
