Upper Coolant Pipes, Removing And Installing: Removing

-- Remove the ignition coil with power output stages cylinder "3". Refer to IGNITION COILS WITH POWER OUTPUT STAGES, REMOVING AND INSTALLING .

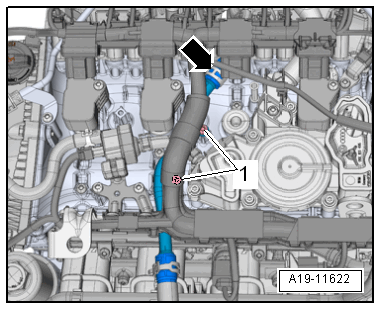

-- Release the retainers in direction of -arrows- and remove wiring duct -1- from bracket.

Fig 1: Identifying Bracket And Bolts

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Clamp off the coolant hoses -arrows- with the :3094  .

Fig 2: Locating Clamps And Bolts

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Loosen the clamps and remove the coolant hoses.

-- Remove the bolt -1- and remove the upper coolant pipe.
