Oil Pan Lower Section, Removing And Installing, Plastic Oil Pan: Removing

Fig 1: Locating Noise Insulation

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the noise insulation -1-. Refer to OVERVIEW - NOISE INSULATION .

-- Place the : SMN372500  under the engine and drain the engine oil.

-- Remove the bolts -1 through 20- and remove the oil pan.

Fig 2: Oil Pan Lower Section - Tightening Sequence (Made Of Plastic)

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

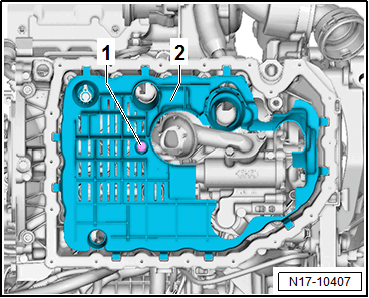

-- Remove the bolt -1- and remove the oil baffle -2-.
