Oil Pan Lower Section, Removing And Installing, Plastic Oil Pan: Installing
WARNING: This page is about a different variant/trim than selected.
-- Install a new oil baffle. Tightening specification: -item ) OVERVIEW - OIL PAN/OIL PUMP - List Item: Oil Baffle

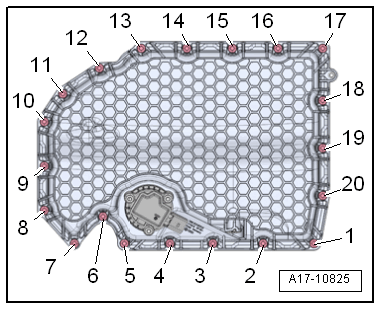

-- Tighten the new bolts -1 through 20- in two stages in the sequence shown:
| Step | Tightening Sequence and Tightening Specification |
|---|---|
| 1. Bolts -1 through 20- | Pre-tighten to 8 Nm |
| 2. Bolts -1 through 20- | 90° additional turn |
-- Fill with engine oil and then check the level. Refer to ENGINE OIL, DRAINING, REPLACING OIL FILTER AND FILLING ENGINE OIL .
