Oil Level Thermal Sensor -G266-, REMOVING AND INSTALLING: Removing

-- Drain the engine oil. Refer to ENGINE OIL, DRAINING, REPLACING OIL FILTER AND FILLING ENGINE OIL .

-- Remove the noise insulation. Refer to OVERVIEW - NOISE INSULATION .

-- Disconnect the connector -3-.

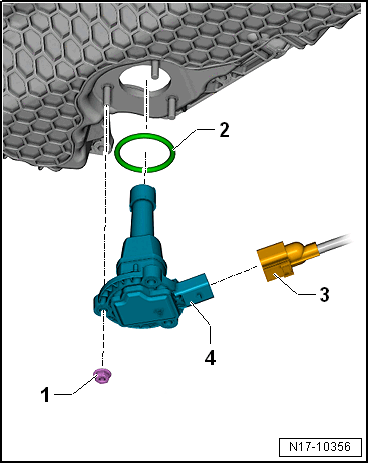

Fig 1: Identifying Oil Level Thermal Sensor

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the nuts -1- and the Oil Level Thermal Sensor -G266- -4-.
