Overview - Crankcase Ventilation

Fig 1: Crankcase Ventilation Exploded View

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Cylinder Head Cover
2. Seal
   • Replace after removing.
3. Hose
   • To the EVAP Canister Purge Regulator Valve 1 -N80-
4. Oil Separator
   • Removing and installing. Refer to OIL SEPARATOR, REMOVING AND INSTALLING .
5. Seal
   • Replace after removing.
6. Hose
   • For the crankcase ventilation
   • To the turbocharger
7. Bolt
   • 4 Nm
   • Thread cutting
   • Position the bolt by hand and tighten it until it finds the old threads. Then tighten the bolt to the specification.
8. Seal
   • Replace after removing.
9. Bolt
   • Thread cutting
   • Position the bolt by hand and tighten it until it finds the old threads. Then tighten the bolt to the specification.
   • Tightening specification and sequence. Refer to Fig 2.

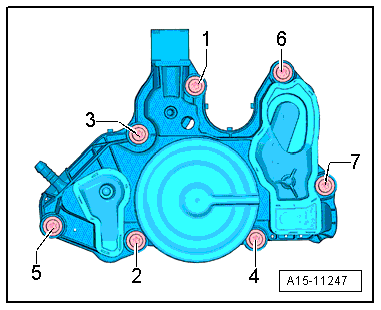

Oil Separator - Tightening Sequence

Fig 2: Oil Separator Tightening Sequence

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Tighten the bolts in the sequence -1 through 7-.
