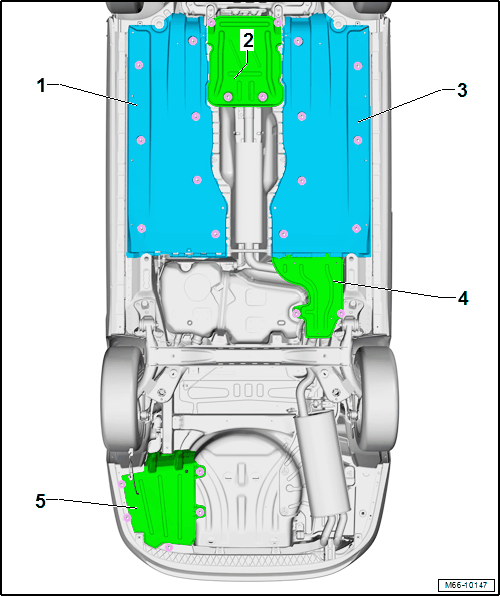

Component Location Overview - Underbody Trim Panels

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Right Front Underbody Trim Panel
   • Tightening Specifications:
     • Nuts 2 Nm
2. Center Underbody Trim Panel
   • Expanding Rivet
   • Quantity 4
3. Left Front Underbody Trim Panels
   • Tightening Specifications:
     • Nuts 2 Nm
4. Extension for Left Underbody Trim Panels
   • Tightening Specifications:
     • Nuts 2 Nm
5. Right Rear Underbody Trim Panel
   • Tightening Specifications:
     • Nuts 2 Nm
     • Bolts 2 Nm
