Overview - Heat Shield

NOTE:

Depending on the engine versions, the heat shield and its mounts may differ slightly.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

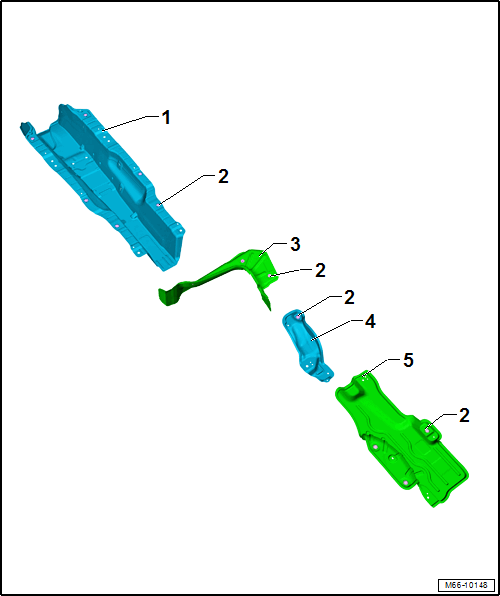

Heat Shield Tunnel
- Removing and Installing. Refer to TUNNEL HEAT SHIELD, REMOVING AND INSTALLING .
Lock Washer
Fuel Tank Heat Shield
- Removing and Installing. Refer to FUEL TANK HEAT SHIELD, REMOVING AND INSTALLING .
Rear Floor Panel Heat Shield
- Removing and Installing. Refer to REAR FLOOR PANEL HEAT SHIELD, REMOVING AND INSTALLING .
Rear Muffler Heat Shield
- Removing and Installing. Refer to REAR MUFFLER HEAT SHIELD, REMOVING AND INSTALLING .
