Component Location Overview - Instrument Panel Lamps

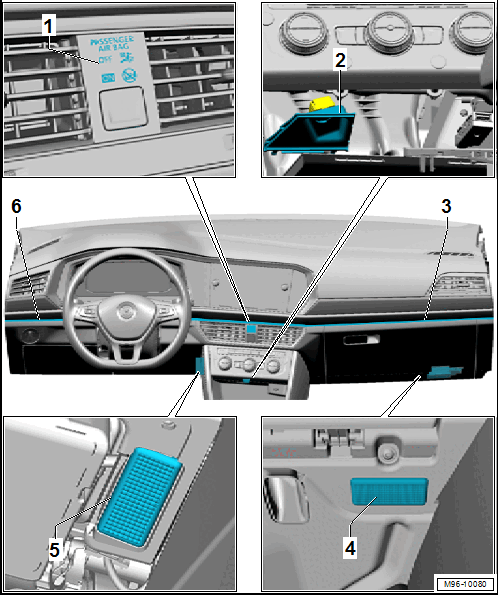

Fig 1: Component Location Overview - Instrument Panel Lamps

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Front Passenger Airbag -Disabled- Indicator Lamp -K145-
   • Is removed together with the Emergency Flasher Switch -EX3-.
   • Emergency Flasher Switch -EX3- removing. Refer to Emergency Flasher Switch -EX3-, REMOVING AND INSTALLING .
2. Storage Compartment Illumination Bulb -L120-
   • Removing and installing. Refer to Storage Compartment Illumination Bulb -L120-, REMOVING AND INSTALLING .
3. Instrument Panel Contour Illumination Lamp 3 -L245-
   • Removing and installing. Refer to Instrument Panel Contour Illumination Lamp 2 - L244- /Instrument Panel Contour Illumination Lamp 3 -L245-, REMOVING AND INSTALLING .
4. Right Front Footwell Lamp -K269-
   • Removing and installing. Refer to Left Front Footwell Lamp -K268- /Right Front Footwell Lamp -K269-, REMOVING AND INSTALLING .
5. Left Front Footwell Lamp -K268-
   • Removing and installing. Refer to Left Front Footwell Lamp -K268- /Right Front Footwell Lamp -K269-, REMOVING AND INSTALLING .
6. Instrument Panel Contour Illumination Lamp 2 -L244-
   • Removing and installing. Refer to Instrument Panel Contour Illumination Lamp 2 - L244- /Instrument Panel Contour Illumination Lamp 3 -L245-, REMOVING AND INSTALLING .
