Component Location Overview - Center Console Lamps

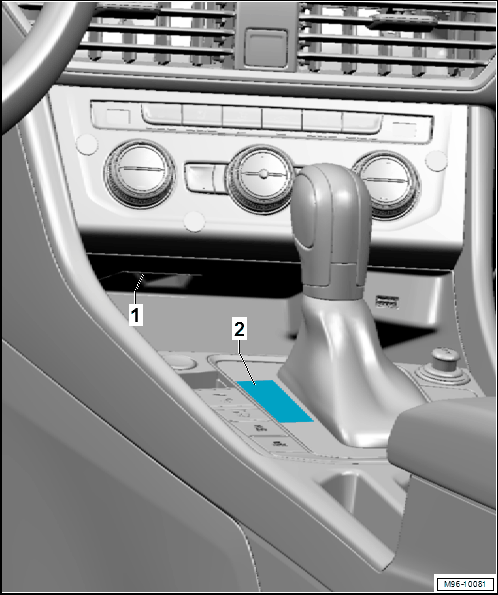

Fig 1: Component Location Overview - Center Console Lamps

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Storage Compartment Illumination Bulb -L120-
   • Removing and installing. Refer to Storage Compartment Illumination Bulb -L120-, REMOVING AND INSTALLING .
2. Selector Lever Transmission Range Position Display Unit -Y26-
   • Removing and installing. Refer to Selector Lever Transmission Range Position Display Unit -Y26-, REMOVING AND INSTALLING .
