Component Location Overview - Instrument Panel Controls

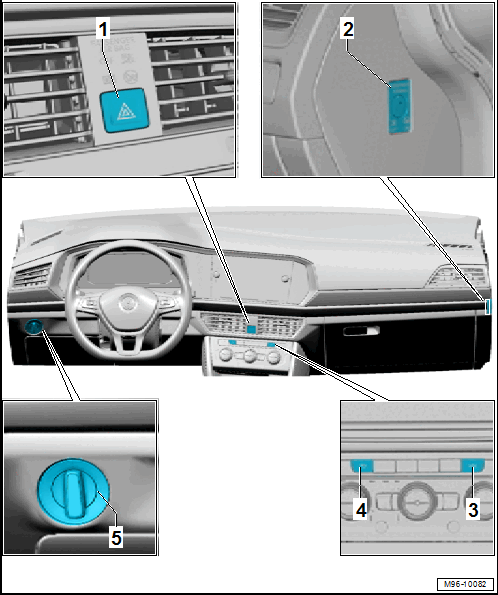

Fig 1: Component Location Overview - Instrument Panel Controls

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Emergency Flasher Switch -EX3-
   • Removing and installing. Refer to Emergency Flasher Switch -EX3-, REMOVING AND INSTALLING .
2. Front Passenger Airbag Deactivation Key Switch -E224-
   • Removing and installing. Refer to FRONT PASSENGER AIRBAG DEACTIVATION KEY SWITCH, REMOVING AND INSTALLING .
3. Right Seat Heating Button -E654-
   • Integrated in the display control head:
     • Heater Control Module -J65- or
     • A/C Control Module -J301- or
     • Climatronic Control Module -J255-
   • Cannot be replaced separately if faulty.
   • Heater Control Module -J65- /A/C Control Module -J301- /Climatronic Control Module -J255- removing and installing. Refer to OVERVIEW - DISPLAY CONTROL HEAD .
4. Left Seat Heating Button -E653-
   • Integrated in the display control head:
     • Heater Control Module -J65- or
     • A/C Control Module -J301- or
     • Climatronic Control Module -J255-
   • Cannot be replaced separately if faulty.
   • Heater Control Module -J65- /A/C Control Module -J301- /Climatronic Control Module -J255- removing and installing. Refer to OVERVIEW - DISPLAY CONTROL HEAD .
5. Rotary Light Switch -EX1-
   • Removing and installing. Refer to Rotary Light Switch -EX1-, REMOVING AND INSTALLING .
