Reducing Agent Delivery Line Front Section, Removing And Installing: Removing

WARNING: This page is about a different car, the 2015 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the right underbody trim panel. Refer to UNDERBODY TRIM PANEL .

-- Remove the underbody trim panel in front of the right rear axle. Refer to UNDERBODY TRIM PANEL .

-- To catch escaping reducing agent place a clean cloth under the coupling point.

-- Seal all the open lines and connections with clean plugs from the :VAS6122 .

-- Disconnect the fuel lines from the underbody. Refer to CONNECTOR COUPLINGS .

-- Disconnect the reducing agent delivery line at the connection point on the underbody. Refer to -item ) Mount-.

-- Disconnect the connector for the reducing agent line. Refer to REDUCING AGENT DELIVERY LINE, DISCONNECTING .

-- Unclip, release and remove the reducing agent delivery line connector from the underbody.

-- Lower the vehicle with the hoist.

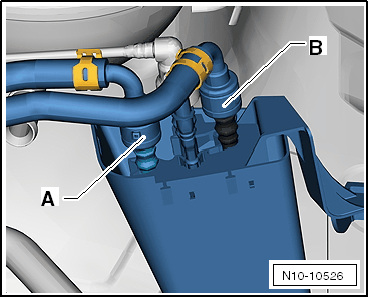

-- Open the couplings -A and B- and remove the fuel lines. Disconnect the couplings. Refer to CONNECTOR COUPLINGS .

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disconnect the reducing agent delivery line from the Reducing Agent Injector -N474-. Refer to Reducing Agent Injector -N474-, REMOVING AND INSTALLING .

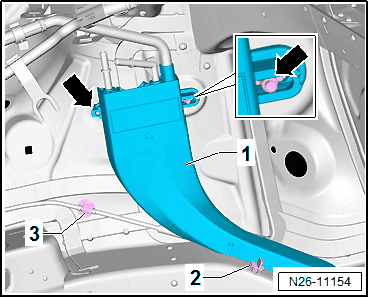

-- Remove the shield -1- from the body.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Unclip the lines and remove the shield upward.

-- Unclip the reducing agent delivery line from the underbody.

-- Pull the reducing agent delivery line and the fuel lines in the engine compartment together forward out of the guide tunnel.
