Valve Stem Seals, Removing And Installing: Installing

WARNING: This page is about a different car, the 2015 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.

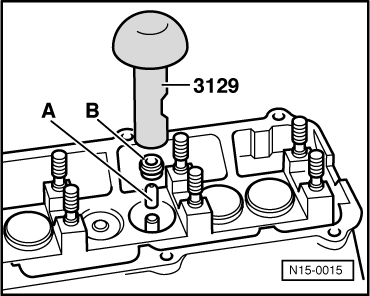

GWWN15-0015Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Attach the plastic sleeve provided -A- to the valve stem. This prevents the new valve stem seal -B- from getting damaged.

-- Insert the new valve stem seal into the :3129  .

-- Grease lip of valve stem seal and carefully slide onto valve guide.
