Camshaft, Removing And Installing: Installing

WARNING: This page is about a different car, the 2015 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.

Conditions

The pistons must not be positioned at TDC.
When installing the camshafts, the cam lobes for cylinder 1 must point upward.

NOTE:

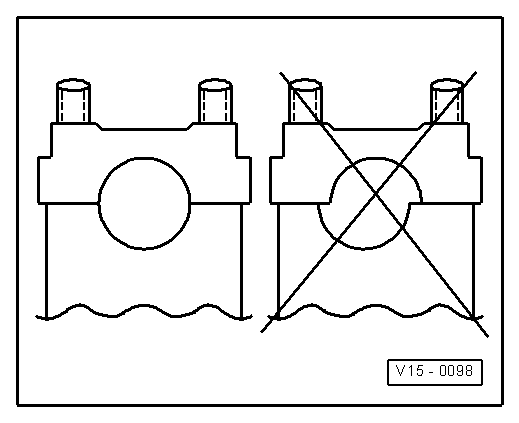

When installing, make sure the bearing cap is centrally positioned. Before installing, set bearing caps in place and determine installation position.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Lubricate the running surfaces of both camshaft.

-- Install the camshaft.

-- Tighten bearing caps 2 and 4 alternating in a diagonal sequence.

-- Coat the contact surfaces from the first bearing cap with sealant.

-- Install bearing cap 3, 1 and 5 and tighten them.

-- Mount the woodruff key into the camshaft.

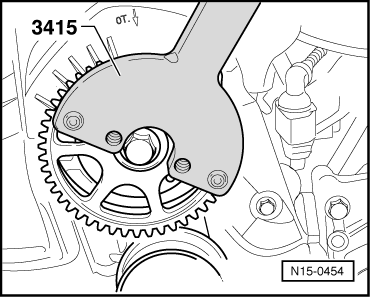

-- Install camshaft sprocket. To tighten the bolt, hold the camshaft sprocket firmly using the :3415 .

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
