Camshaft Seal, Removing And Installing: Removing

WARNING: This page is about a different car, the 2015 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the upper toothed belt guard.

-- Turn the crankshaft the direction of engine rotation and move the camshaft sprocket to TDC cylinder 1.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

The marking on camshaft sprocket must line up with the arrow on toothed belt guard -arrows-.

-- Loosen the tensioning roller and remove the toothed belt from the camshaft sprocket.

-- Then turn the crankshaft slightly backward.

-- Remove the camshaft sprocket. To loosen the bolt, hold the camshaft sprocket firmly using the :3415 .

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove woodruff key from the camshaft.

-- Install the mounting bolt for the camshaft gear all the way into the camshaft.

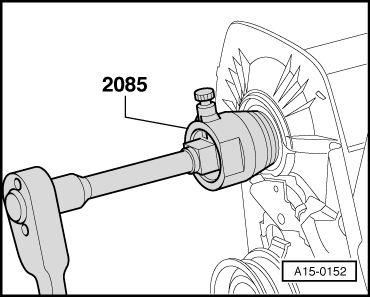

-- Remove the inner portion of :2085 two rotations (approximately 3 mm) from outer portion and secure with knurled-head screw.

-- Lubricate the threaded head on the :2085 position it and install it as far as possible into the seal using force.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Loosen knurled bolt and turn inner part against camshaft until seal is removed.

-- Tension the :2085 in a vise at the flat spots. Remove seal with pliers.
