Camshaft Seal, Removing And Installing: Installing

WARNING: This page is about a different car, the 2015 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.

Conditions

The pistons must not be positioned at TDC.

NOTE:

Do not lubricate or grease the sealing lip on the seal.

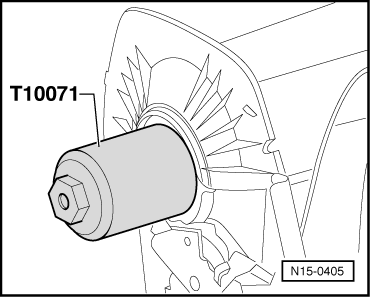

-- Position the seal using the :T10071 and press it in all the way using the :T10071/1 and :T10071/2 .

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Insert the coil spring into the camshaft.

-- Install camshaft sprocket. To tighten the bolt, hold the camshaft sprocket firmly using the :3415 .
