Toothed Belt, Removing And Installing: Removing

WARNING: This page is about a different car, the 2015 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the noise insulation. Refer to NOISE INSULATION .

-- Remove the ribbed belt. Refer to RIBBED BELT, REMOVING AND INSTALLING .

-- Remove the ribbed belt tensioning damper.

-- Remove the coolant expansion tank. The coolant hoses remain connected.

-- Remove the upper toothed belt guard.

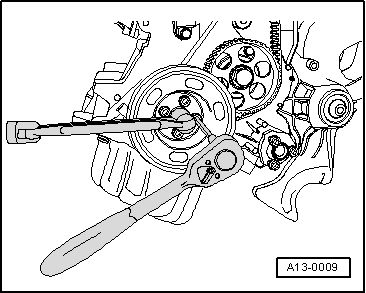

-- Turn the crankshaft the direction of engine rotation and move the camshaft sprocket to TDC cylinder 1.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

The marking on camshaft sprocket must line up with the arrow on toothed belt guard -arrows-.

-- Support the engine in its installed position. Refer to ENGINE, SUPPORTING IN INSTALLED POSITION .

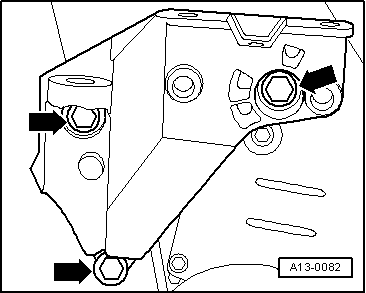

-- Remove the engine mount bolts -arrows-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the engine mount.

-- Remove the belt pulley/vibration damper.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the engine support from the cylinder block.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

NOTE:

To loosen the front engine carrier bolt, the engine must be slightly lifted by the engine support bridge.

-- Remove the lower and center toothed belt guards.

-- Mark direction of rotation of toothed belt.

-- Loosen the tensioning roller and remove the toothed belt.

-- Then turn the crankshaft slightly backward.
