Special Tools

WARNING: This page is about a different car, the 2015 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special Tools And Workshop Equipment Required

Counterhold - Crankshaft Sprocket : 3415
Torque Wrench 1331 5-50Nm :VAG1331
Torque Wrench 1332 40-200Nm :VAG1332
For the correct sealant.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special Tools And Workshop Equipment Required

Engine Support Bridge :10-222A
Engine Support Bridge - Spindle : 10-222A/11
Engine Support Bridge - Engine Support 28 :10-222A/28
Engine Support Bridge - Engine Support 31 :10-222A/31
Rail with Holes :T40091/2 from the Engine Support - Basic Set :T40091
Mount :T40093/5 from the Engine Support - Supplement Kit :T40093A
Engine Support Bridge - Engine Support 28-2 :10-222A/28-2 , quantity: 2
Square Pipe :T40091/1 (quantity 2) from the Engine Support - Basic Set :T40091
Movable Joint :T40091/3 (quantity 2) from the Engine Support - Basic Set :T40091
Movable Joint :T40093/4 (quantity 2) from the Engine Support - Supplement Kit :T40091

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special Tools And Workshop Equipment Required

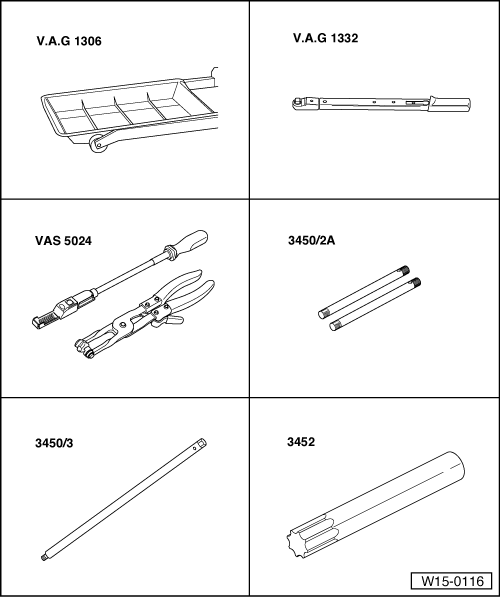

Instrument/Gauge Tester :VAG1306 or Shop Crane - Drip Tray :VAS6208
Torque Wrench 1332 40-200Nm:VAG1332
Hose Clip Pliers VAS5024A
Head Gasket Alignment Tool - Pins :3450/2A
Head Gasket Alignment Tool - Rod :3450/3
Wrench :3452 or Polydrive Bit Drive Socket :T10070

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special Tools And Workshop Equipment Required

Valve Lever :VW541/1A
Valve Lever - Press Tool 5 :VW541/5
Pressure Hose :VW653/3

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special Tools And Workshop Equipment Required

Puller - Camshaft Seal :2085
Counterhold - Crankshaft Sprocket : 3415
Seal Installer - Camshaft :T10071
Torque Wrench 1331 5-50Nm :VAG1331
Torque Wrench 1332 40-200Nm :VAG1332

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special Tools And Workshop Equipment Required

Spark Plug Removal Tool :3122B
Puller - Spark Plug Connector :T10112A
Torque Wrench 1331 5-50Nm :VAG1331
Compression Tester Kit :VAG1763

(With Cylinder Head Installed)

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special Tools And Workshop Equipment Required

Seal Installer - Valve Stem Seal Tool :2036
Slide Hammer :3047A
Spark Plug Removal Tool :3122B
Seal Installer - Valve Stem :3129
Puller - Spark Plug Connector :T10112A
Torque Wrench 1331 5-50Nm :VAG1331

Special Tools And Workshop Equipment Required

Toothed Belt Tensioner :T10020

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Puller - Spark Plug Connector :T10112A

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Dial Gauge Holder :VW387

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Valve Guide Reamer - 7mm :3120

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Valve Guide Drift :3121

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
