Overview - Fuel Tank, Hybrid

WARNING: This page is about a different car, the 2018 Volkswagen Jetta, 2017 Volkswagen Jetta, 2016 Volkswagen Jetta, and 2015 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.

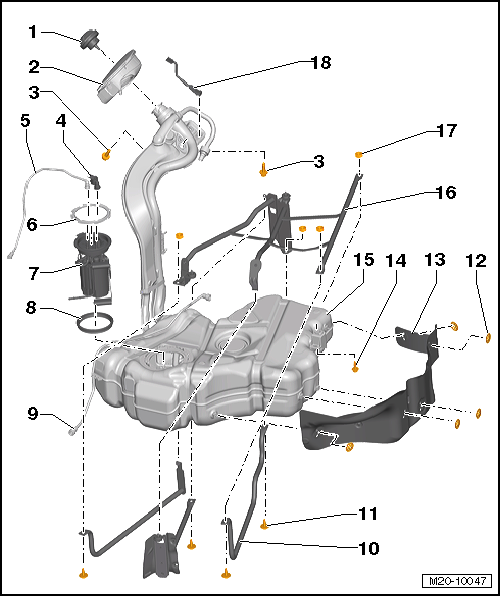

Fig 1: Exploded View Of Fuel Tank Assembly Components (Hybrid)

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Cap
- Replace the seal if damaged.
Fuel Filler Door Unit
- With rubber cup
- Removing and installing. Refer to FUEL FILLER DOOR UNIT .
Screw
- 10 Nm
EVAP Canister System Pressure Sensor -G804-
- Make sure it is secure
Fuel Supply Line
- Black
- Attached to the side of the fuel tank
- To disconnect, press the release button on the connecting piece
- Connector Couplings, Disconnecting. Refer to CONNECTOR COUPLINGS .
- The connector couplings must >>audibly<< engage when locking.
- Check for secure fit
- Pull on the connector coupling to check for secure fit.
Locking Ring
- 110 Nm ± 5 Nm
- Make sure it is secure
Fuel Delivery Unit
- Overview. Refer to OVERVIEW - FUEL DELIVERY UNIT/FUEL LEVEL SENSOR .
- Removing and Installing. Refer to FUEL DELIVERY UNIT/FUEL LEVEL SENSOR, REMOVING AND INSTALLING .
- With the Transfer Fuel Pump -G6-
- Transfer Fuel Pump -G6-, Checking. Refer to FUEL PUMP .
- With the Fuel Gauge Sensor -G-
- Fuel Gauge Sensor -G-, Removing and Installing. Refer to Fuel Level Sensor -G-, REMOVING AND INSTALLING, HYBRID .
- Clean the screen if there are debris
Seal
- Replace after removing
- Install the dry seal into the opening in the fuel tank
- Coat the inside of seal with fuel only before installing the fuel delivery unit.
Breather Line
- To the EVAP Canister
- Attached to the side of the fuel tank
- To disconnect, press the release button on the connecting piece
- Connector Couplings, Disconnecting. Refer to CONNECTOR COUPLINGS .
- The connector couplings must >>audibly<< engage when locking.
- Check for secure fit
- Pull on the connector coupling to check for secure fit.
Mounting Strap
- Lower Section
- Note the installation position
Bolt
- 23 Nm
- Replace after removing
Lock Washer
Heat Shield
Bolt
- 23 Nm
- Replace after removing
Fuel Tank
- Removing and installing. Refer to FUEL TANK, REMOVING AND INSTALLING .
Mounting Strap
- Upper part
- Note the installation position
Nuts
- 23 Nm
- Replace after removing
- Connects upper and lower sections
Ground (GND) Connection
- Make sure it is secure
- Installed position. Refer to Checking the Installation Position of the Ground Connection .
