Overview - Fuel Delivery Unit, Hybrid
WARNING: This page is about a different car, the 2018 Volkswagen Jetta, 2017 Volkswagen Jetta, 2016 Volkswagen Jetta, and 2015 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Hose connections are secured with either spring-type or clamp-type clips.
Replace the locking clamps with spring clamps.
Fuel hoses at engine must only be secured with spring-type clips. The use of clamp or screw type clips is not permissible.
The :VAS6340 are recommended for installing spring clamps.

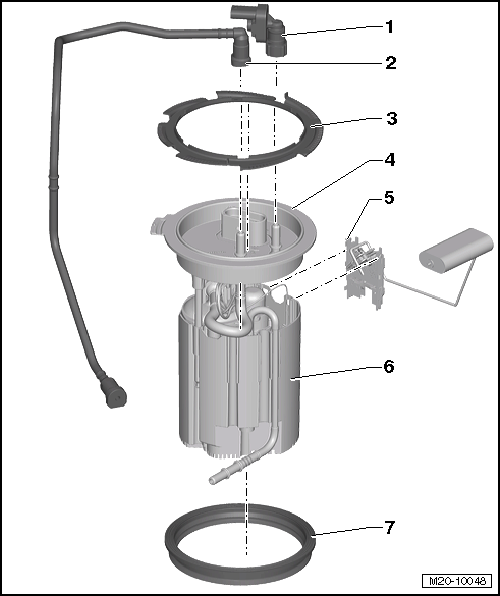

- EVAP Canister System Pressure Sensor -G804-
- Make sure the connector and pressure sensor are seated securely
- Fuel Supply Line
- Black
- Attached to the side of the fuel tank
- To disconnect, press the release button on the connecting piece
- Connector Couplings, Disconnecting. Refer to CONNECTOR COUPLINGS .
- The connector couplings must >>audibly<< engage when locking.
- Check for secure fit
- Pull on the connector coupling to check for secure fit.
- Locking Ring
- 110 Nm
- Make sure it is secure
- Flange
- For the fuel delivery unit
- Fuel Level Sensor -G-
- Removing and installing. Refer to Fuel Level Sensor -G-, REMOVING AND INSTALLING, HYBRID .
- Fuel Delivery Unit
- Removing and Installing. Refer to FUEL DELIVERY UNIT/FUEL LEVEL SENSOR, REMOVING AND INSTALLING .
- With the Transfer Fuel Pump -G6-
- Transfer Fuel Pump -G6-, Checking. Refer to FUEL PUMP .
- With the Fuel Gauge Sensor -G-
- Fuel Gauge Sensor -G-, Removing and Installing. Refer to Fuel Level Sensor -G-, REMOVING AND INSTALLING, HYBRID .
- Seal
- Replace after removing
- Install the dry seal into the opening in the fuel tank
- Moisten with fuel only when installing flange
