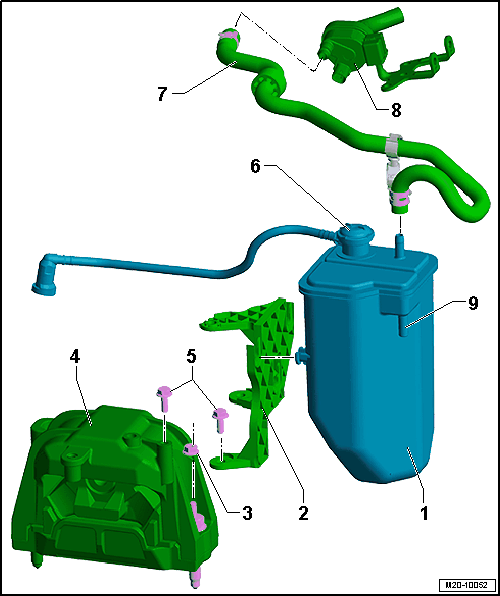

Overview - EVAP System, EVAP Canister In Engine Compartment
WARNING: This page is about a different car, the 2018 Volkswagen Jetta, 2017 Volkswagen Jetta, 2016 Volkswagen Jetta, and 2015 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Hose connections are secured with either spring or hose clamps.
Replace the locking clamps with spring clamps.
:VAS6340 and the :VAS6362 are recommended for installing spring-type clips.
The connector couplings must >>audibly<< engage when locking.
Note the color coding when installing the connector coupling. Refer to Coupling Allocation !
Pull on the connector coupling to check for secure fit.
Disconnect the connector couplings. Refer to CONNECTOR COUPLINGS .
- Evaporative Emission (EVAP) Canister
- Component location: in the engine compartment on the right side
- Removing and installing. Refer to EVAP CANISTER, REMOVING AND INSTALLING, EVAP CANISTER IN ENGINE COMPARTMENT .
- When liquid fuel is determined in the EVAP canister, it must be replaced
- Bracket
- For the EVAP canister
- Nut
- 10 Nm
- Engine Mount
- Bolts
- 10 Nm
- Connecting Line
- With the pressure regulator valve in the connecting line
- Check for secure fit
- From the fuel tank
- Do not kink
- To disconnect, press the release button on the connecting piece
- Connector Couplings, Disconnecting. Refer to CONNECTOR COUPLINGS .
- The connector couplings must >>audibly<< engage when locking.
- Pull on the connector coupling to check for secure fit.
- Connecting Line
- To the Intake Manifold
- Make sure it is secure
- EVAP Canister Purge Regulator Valve 1 -N80-
- The valve is closed when the ignition is off
- Valve is activated (pulsed) by the engine control module when the engine is warm
- Vent Hole
