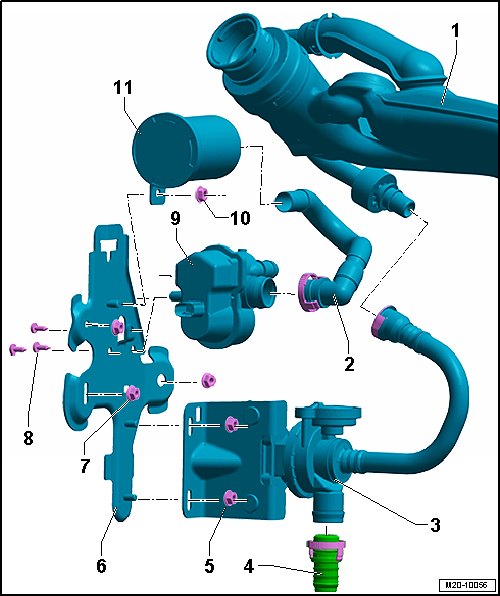

Overview - Diagnosis Pump
WARNING: This page is about a different car, the 2018 Volkswagen Jetta, 2017 Volkswagen Jetta, 2016 Volkswagen Jetta, and 2015 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.
- Fuel Tank Filler Tube
- Connecting Pipe
- Leak Detection Pump -V144- to the air filter
- Check for secure fit
- Do not kink
- To disconnect, press the release button on the connecting piece
- Connector Couplings, Disconnecting. Refer to CONNECTOR COUPLINGS .
- The connector couplings must >>audibly<< engage when locking.
- Pull on the connector coupling to check for secure fit.
- Valve
- Connecting Pipe
- From the EVAP canister
- Check for secure fit
- Do not kink
- To disconnect, press the release button on the connecting piece
- Connector Couplings, Disconnecting. Refer to CONNECTOR COUPLINGS .
- The connector couplings must >>audibly<< engage when locking.
- Pull on the connector coupling to check for secure fit.
- Nut
- 6 Nm
- Bracket
- Leak Detection Pump -V144-
- Nut
- 6 Nm
- Leak Detection Pump -V144- bracket to the body
- Quantity: 3
- Bolts
- 3 Nm
- Leak Detection Pump -V144- to bracket
- Leak Detection Pump -V144-
- Removing and Installing. Refer to LEAK DETECTION PUMP, REMOVING AND INSTALLING .
- Checking using the Vehicle Diagnostic Tester. Refer to FUEL SYSTEM, CHECKING FOR LEAKS .
- If the diagnostic pump is replaced due to fuel entering, the EVAP canister must also be replaced.
- Nut
- 2 Nm
- Air filter at bracket
- Air Filter
