Leak Detection Pump, Removing And Installing: Removing

WARNING: This page is about a different car, the 2018 Volkswagen Jetta, 2017 Volkswagen Jetta, 2016 Volkswagen Jetta, and 2015 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the right rear wheel housing liner. Refer to WHEEL HOUSING LINER .

Vehicles With Pressure Regulating Valve

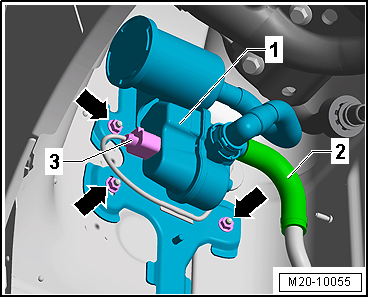

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disconnect the connector -3- from the pressure regulating valve -1-.

-- Disconnect connecting line -2- and remove from the pressure regulating valve -1-.

-- Remove the nuts -arrows- and the pressure regulating valve -1- from the bracket.

Continuation For All Vehicles

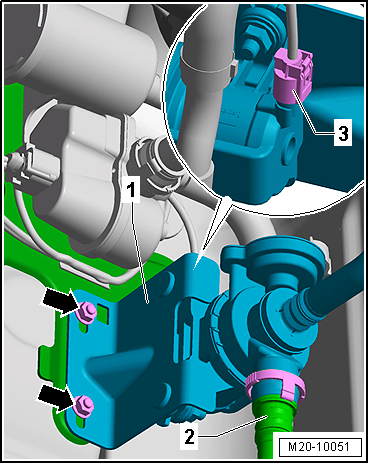

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disconnect the vent line -2- from the Leak Detection Pump -V144- -1-.

-- Disconnect the connector -3- from the Leak Detection Pump -V144- -1-.

-- Remove the nuts -arrows- and remove the Leak Detection Pump -V144- -1- with the bracket.
