EVAP Canister, Removing And Installing, EVAP Installed In The Right Rear: Removing
WARNING: This page is about a different car, the 2018 Volkswagen Jetta, 2017 Volkswagen Jetta, 2016 Volkswagen Jetta, and 2015 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.
-- If equipped, remove the right rear underbody trim panel. Refer to UNDERBODY TRIM PANEL .

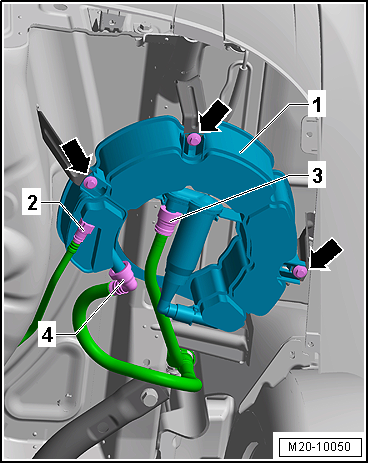

-- Disconnect and remove the lines -2, 3 and 4-. To do so, press in or press together securing ring.
-- Remove the bolts -arrows- and remove the Evaporative Emission (EVAP) canister -1-.
