EVAP Canister System Connection Diagram, EVAP Canister In Engine Compartment

WARNING: This page is about a different car, the 2018 Volkswagen Jetta, 2017 Volkswagen Jetta, 2016 Volkswagen Jetta, and 2015 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.

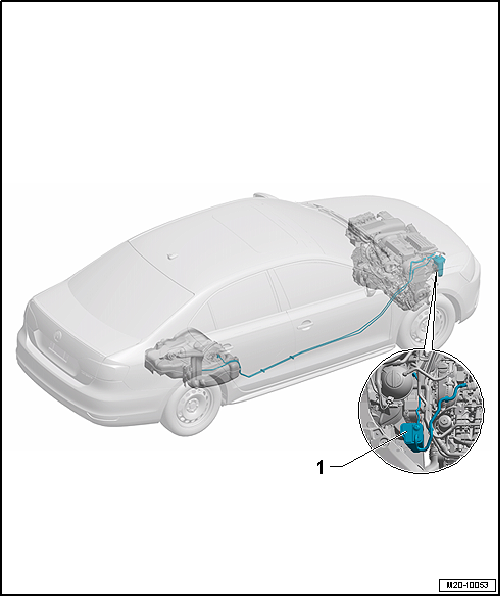

Fig 1: EVAP Canister Components Location (In Engine Compartment)
GWWM20-10053Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Evaporative Emission (EVAP) Canister
