Camshaft Seal For Transmission Side Exhaust Camshaft, Removing And Installing: Installing

WARNING: This page is about a different car, the 2018 Volkswagen Jetta, 2017 Volkswagen Jetta, and 2016 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

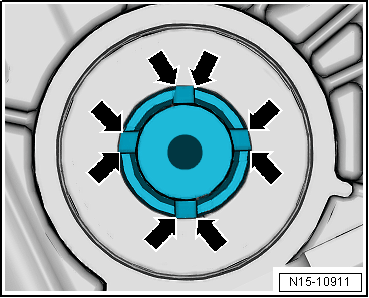

-- If necessary, remove any burrs in the outer area of the grooves on the exhaust camshaft -arrows- using fine-grain 220 to 1000 sandpaper.

Do not coat the new seal with oil.

-- Slide the seal -1- over the :T10479/3 onto the :T10479/2 .

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Installed position: the closed side of the seal faces the seal installer.

-- Separate the fitting sleeve and guide sleeve.

-- Position the :T10479/2 with the seal -2- in the center on the camshaft.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Secure the guide sleeve to the camshaft with the coolant pump drive wheel bolt -1-.

-- Push the seal onto the camshaft and remove the guide sleeve.

-- Install the seal -2- with the :T10479/1 and the bolt -1- for the coolant pump drive wheel all the way.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install the coolant pump toothed belt. Refer to COOLANT PUMP TOOTHED BELT SPROCKET, REMOVING AND INSTALLING .
