Valve Timing, Checking: Procedure
-- Remove the noise insulation. Refer to NOISE INSULATION .
-- Remove the resonator for the intake air scoop. Refer to INTAKE AIR SCOOP RESONATOR, REMOVING AND INSTALLING .
-- Remove the air duct pipe. Refer to AIR DUCT PIPE, REMOVING AND INSTALLING .
-- Push the release button and remove the hose -1- from the EVAP canister.
-- Remove the bolts -arrows- and then remove the crankcase ventilation hose.
-- Remove the turbocharger connection. Refer to TURBOCHARGER, REMOVING AND INSTALLING .
-- Release the connector from the Ignition Coil 4 with Power Output Stage -N292- and remove -item 18) COMPONENT LOCATION OVERVIEW - INJECTION SYSTEM -.
-- Free up the wiring harness -arrows-.
-- Remove the bolts -1 and 3- and remove the toothed belt guard -2- for the coolant pump toothed belt.
-- Remove the bolts -arrows- and the cover -1-.
Risk of chemical damage to the coolant pump seal from oil entry between the coolant pump and the cylinder head.
-- Cover the coolant pump with a clean cloth to catch escaping oil.
Turn The Crankshaft To "TDC" As Follows
-- Remove the Ignition Coil 1 with Power Output Stage -N70- and the cylinder 1 spark plug. Refer to OVERVIEW - IGNITION SYSTEM .
-- Insert a screwdriver with a shaft length of at least 250 mm into the spark plug shaft until it rests on the piston crown.
-- Turn the crankshaft in the direction of engine rotation until the cylinder 1 piston is in "BDC".
The screwdriver moves in the direction of -arrow- during this.
-- Continue turning the crankshaft in the direction of engine rotation until the screwdriver has moved -30 mm- in the direction of -arrow-.
-- Remove the plug for the "TDC" hole in the cylinder block.
-- Install the :T10340 all the way into the cylinder block and tighten to 30 Nm.
-- Turn the crankshaft all the way in direction of engine rotation.
- The locking pin is touching the crankshaft counterweight.
The :T10340 locks the crankshaft only in direction of engine rotation.
There Is a Risk of Damaging the Engine.
- If the :T10340 cannot be installed all the way, then the crankshaft is not in the correct position.
- In this case, proceed as follows:
- Remove the locking pin.
- Turn the crankshaft 90° in the direction of engine rotation.
- Install the :T10340 all the way into the cylinder block and tighten to 30 Nm.
- Continue to turn the crankshaft in the direction of engine rotation until it stops.
- The asymmetrical grooves -upper arrows- on the transmission side on both camshafts must now face upward.
- The grooves -arrows- on the exhaust camshaft -A- are accessible through the holes in the drive wheel for the coolant pump.
- The grooves -arrows- on the intake camshaft -E- are above the center of the camshaft.
A - Exhaust Camshaft
E - Intake Camshaft
-- If the camshafts are not positioned as described, remove the :T10340 and turn the crankshaft one turn farther and back to "TDC".
It must be easy to insert the :T10494 .
Do not use a hammer to install the camshaft positioning tool.
If the :T10494 cannot be inserted easily:
Vehicles With Two Camshaft Adjusters

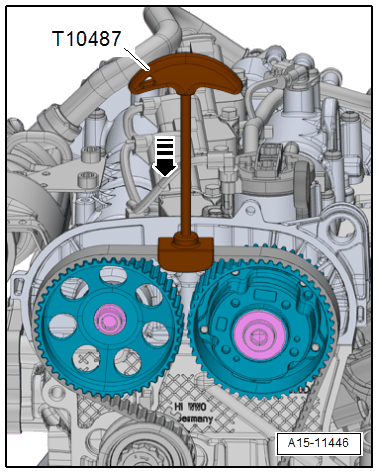

-- Use the :T10487 to push on the toothed belt in the direction of -arrow-.
Vehicles With A Camshaft Adjuster
-- Use the :T10487 to push on the toothed belt in the direction of -arrow-.
Continuation For All Vehicles
-- Insert the :T10494 all the way into the camshafts while doing so.
-- Tighten the bolt -arrow- hand-tight.
If it is not easy to install the camshaft locating tool:
-- Adjust the valve timing. Refer to VALVE TIMING, ADJUSTING .
If is it easy to install the camshaft locating tool:
-- The valve timing is OK.
There Is A Risk Of Damaging The Engine
- Make sure the :T10340 and the :T10494 are removed after completing the work.
Assembly is performed in reverse order.
- Replace the bolts that were tightened with an additional turn.
- Replace the O-ring for the plug if it is damaged.
