Toothed Belt, Removing And Installing, Vehicles With Adjustable Exhaust Camshaft: Installing

WARNING: This page is about a different car, the 2018 Volkswagen Jetta, 2017 Volkswagen Jetta, and 2016 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.

Replace the bolts that were tightened with an additional turn.
Replace the O-ring for the plug if it is damaged.

-- Check the "TDC" position of the camshaft and crankshaft. Refer to VALVE TIMING, CHECKING .

Attach the :T10494 to the camshaft housing.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

NOTE:

There is a risk of damaging the camshaft if handled incorrectly.

Never use the camshaft positioning tool as a counterholder.

:T10340 installed all the way into the cylinder block and tightened to 30 Nm.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Crankshaft in direction of engine rotation touching the :T10340 = "TDC" position.

-- Replace the bolts -1 and 2- for the camshaft sprockets and install them loosely.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

The camshaft sprockets must still turn on the camshafts and may not tip.

The metal tab -arrow- on the tensioning roller must fit into the cast depression in the cylinder head.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Mount the crankshaft toothed belt sprocket on the crankshaft.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

The contact surface between the vibration damper and the crankshaft toothed belt sprocket must not have any oil or grease on it.
The milled surface -arrow- on the crankshaft toothed belt sprocket must fit on the milled surface on the crankcase pin.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

NOTE:

There is a risk of destroying the toothed belt by bending too sharply. The toothed belt is made out of a fiberglass cord webbing, that can be damaged by bending to sharply.

Never bend the toothed belt with a radius less than 25 mm.

The bend radius -r - on the toothed belt -2- must for this reason not be under 25 mm (approximately half the diameter of the toothed belt -1- on the crankshaft).

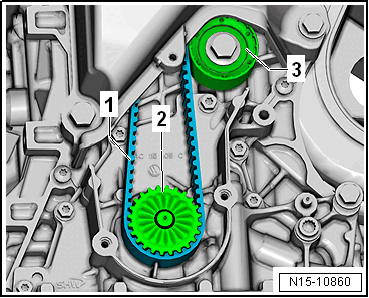

-- Install the toothed belt -1- on the crankshaft toothed belt sprocket -2- from underneath.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install the lower toothed belt guard. Refer to LOWER TOOTHED BELT GUARD, REMOVING AND INSTALLING .

-- Install the vibration damper. Refer to VIBRATION DAMPER, REMOVING AND INSTALLING .

Follow the Sequence When Installing the Toothed Belt

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Pull the toothed belt upward and route it over the idler roller -1-, the tensioning roller -2- and the camshaft sprockets -3 and 4-.

-- Adjust the valve timing. Refer to VALVE TIMING, ADJUSTING, VEHICLES WITH ADJUSTABLE EXHAUST CAMSHAFT .

Assembly is performed in reverse order.
