Lower Toothed Belt Guard, Removing And Installing: Removing

WARNING: This page is about a different car, the 2018 Volkswagen Jetta, 2017 Volkswagen Jetta, and 2016 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the vibration damper. Refer to VIBRATION DAMPER, REMOVING AND INSTALLING .

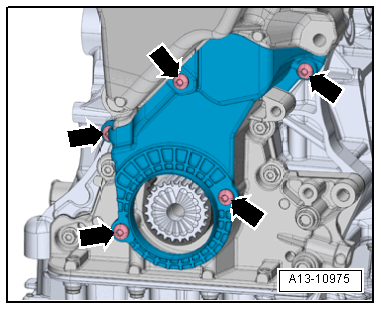

-- Remove the bolts -arrows-.

GWWA13-10975Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the lower toothed belt guard.
