Overview - Toothed Belt Guard

WARNING: This page is about a different car, the 2018 Volkswagen Jetta, 2017 Volkswagen Jetta, and 2016 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.

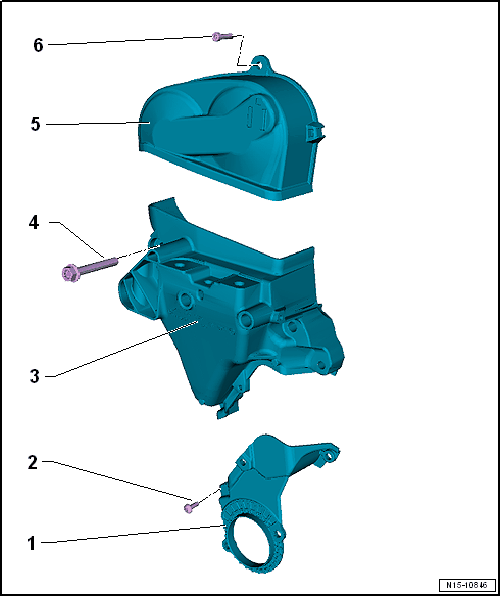

Fig 1: Exploded View Of Toothed Belt Guard
GWWN15-10846Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Lower Toothed Belt Guard
  2. Bolt
    • 8 Nm
  3. Engine Support
    • Tightening specification and sequence. Refer to Figure.
  4. Bolt
    • Tightening specification and sequence. Refer to Figure.
  5. Upper Toothed Belt Guard
  6. Bolt
    • 8 Nm
GWWA10-11575Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
