Tightening Specifications And Sequence For Cylinder Head
WARNING: This page is about a different car, the 2018 Volkswagen Jetta, 2017 Volkswagen Jetta, and 2016 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.
- Replace the bolts that were tightened with an additional turn.

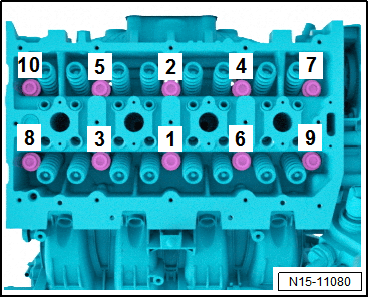

-- Tighten the bolts in the steps shown in the sequence:
| Step | Component | Tightening Specification/Additional Turn |
|---|---|---|
| 1 | Bolts -1 to 10- | 40 Nm |
| 2 | Bolts -1 to 10- | 90° additional turn |
| 3 | Bolts -1 to 10- | 90° additional turn |
| 4 | Bolts -1 to 10- | 90° additional turn |
