Overview - Camshaft Housing, Vehicles Without Adjustable Exhaust Camshaft: Notes

WARNING: This page is about a different car, the 2018 Volkswagen Jetta, 2017 Volkswagen Jetta, and 2016 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.

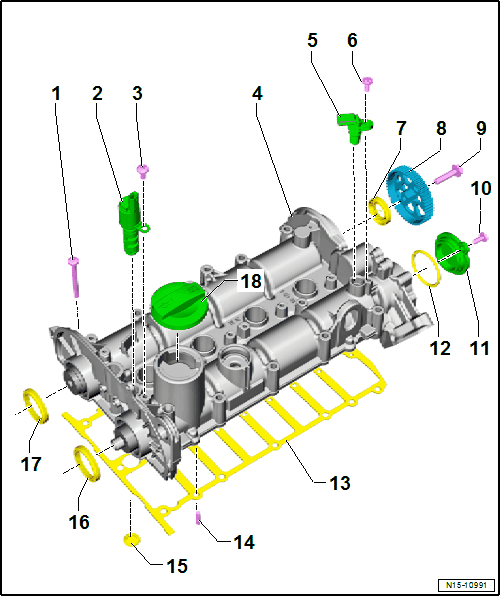

Fig 1: Exploded View Of Camshaft Housing, Vehicles Without Adjustable Exhaust Camshaft

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Bolt
- Tightening specification and sequence. Refer to Tightening Specifications And Sequence Of Camshaft Housing .
- Different lengths installed
Camshaft Adjustment Valve 1 -N205-
- Removing and installing. Refer to Camshaft Adjustment Valve 1 -N205-, REMOVING AND INSTALLING .
Bolt
- 8 Nm
Camshaft Housing
- Removing and installing. Refer to CAMSHAFT HOUSING, REMOVING AND INSTALLING .
Camshaft Position Sensor -G40-
- Removing and installing. Refer to Camshaft Position Sensor -G40-, REMOVING AND INSTALLING .
Bolt
- 8 Nm
Seal
- For the exhaust camshaft on the transmission side
- Replace after removing. Refer to CAMSHAFT SEAL FOR TRANSMISSION SIDE EXHAUST CAMSHAFT, REMOVING AND INSTALLING .
Toothed Belt Sprocket
- For the coolant pump
- Removing and installing. Refer to COOLANT PUMP TOOTHED BELT SPROCKET, REMOVING AND INSTALLING .
Bolt
- Tightening specification. Refer to OVERVIEW - COOLANT PUMP/COOLANT THERMOSTAT .
Bolt
- 8 Nm
Cap
O-ring
- Replace after removing.
Seal
- Replace after removing.
Alignment Pin
Seal
- With oil strainer
- The oil screen may only be installed if the cylinder head has the corresponding recess for it.
- Cylinder heads without a recess do not require an oil screen.
- Installed in the cylinder head
Seal
- Replace after removing. Refer to CAMSHAFT SEAL FOR INTAKE CAMSHAFT, REMOVING AND INSTALLING, BELT PULLEY SIDE .
- For the belt pulley side intake camshaft
Seal
- Replace after removing. Refer to CAMSHAFT SEAL FOR EXHAUST CAMSHAFT ON BELT PULLEY SIDE, REMOVING AND INSTALLING .
- For the belt pulley side exhaust camshaft
Cap
