Cylinder Head, Removing And Installing: Removing

-- During installation, all heat shields must be reinstalled at the same location.

-- Seal the open channel with suitable plugs from the :VAS6122  .

-- Secure all standard production hose clamps. Refer to the Parts information.

-- Cover the opening of the transmission with a cleaning cloth, so that no fluid enters the clutch housing.

-- Remove the camshaft housing. Refer to CAMSHAFT HOUSING, REMOVING AND INSTALLING .

-- Remove the intake manifold. Refer to INTAKE MANIFOLD, REMOVING AND INSTALLING .

-- Disconnect the connectors:

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. From the Reduced Oil Pressure Switch -F378-
2. From the Fuel Pressure Sensor -G247-
3. To the fuel injectors

-- Remove the bolt -2- and the screw-type clamp.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolt -1- and the nuts -arrows- and tie up the catalytic converter.

-- Remove the bolts -arrows- and remove the right drive axle heat shield.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disconnect the connector -4- from the Oil Pressure Switch -F1- -3-.

-- If equipped remove the vacuum pump.

-- Remove the bolts -arrows- and then remove the oil supply line -1- and oil return pipe -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disconnect the connectors -1 and 2- :

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1 - For Engine Coolant Temperature Sensor -G62-

2 - For Charge Air Pressure Actuator -V465-

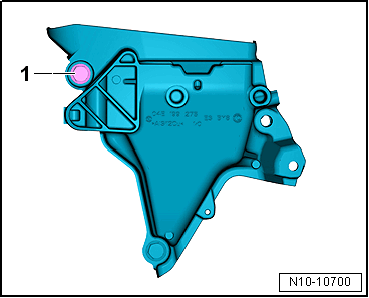

-- Remove the bolt -1- on the engine support.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

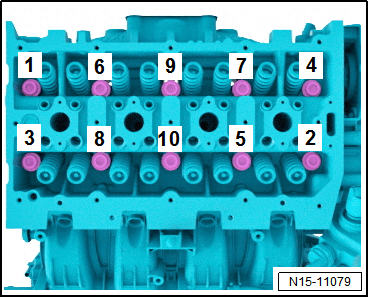

-- Loosen And Remove The Cylinder Head Bolts In The Sequence -1 To 10-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the cylinder head and place it on a soft surface (foam).
