High Tone Horn -H2- /Low Tone Horn -H7-, REMOVING AND INSTALLING

NOTE:

The removal and installation is described for the left side. Removing and installing on the right side is identical.

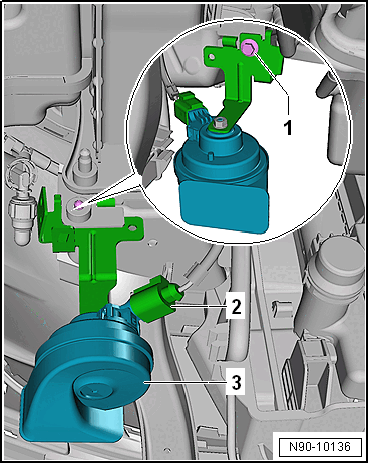

Bracket with Horn, Removing

-- Remove the bolt -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bracket with the horn -3-.

-- Disconnect the connector -2-.

Install the bracket and horn.

Install in reverse order of removal.

Tightening Specifications
