Overview - Electric Coolant Pump
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

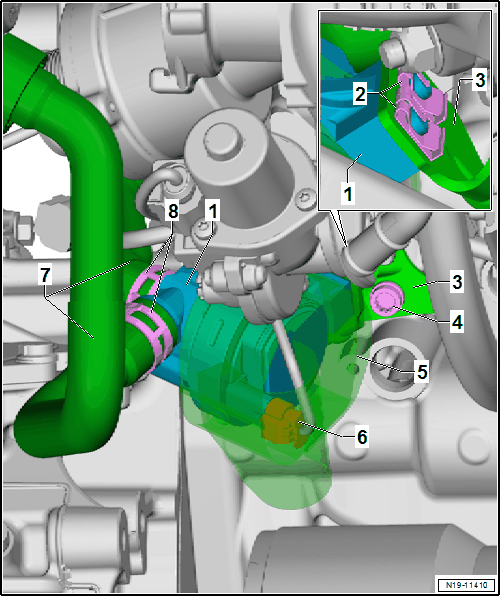

Heater Support Pump -V488-
- Heater Support Pump -V488-
- Component location: under the turbocharger
- Removing and Installing. Refer to Heater Support Pump -V488-, REMOVING AND INSTALLING .
- Clips
- Bracket
- For the Heater Support Pump -V488-
- Bolt
- 20 Nm
- Heat Shield Boot
- Connector
- Coolant Hoses
- Hose Clamps
