Front Coolant Pipe, Removing And Installing: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the air filter housing. Refer to AIR FILTER HOUSING, REMOVING AND INSTALLING .

NOTE:

Place a cleaning cloth underneath to catch any coolant leaking out.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

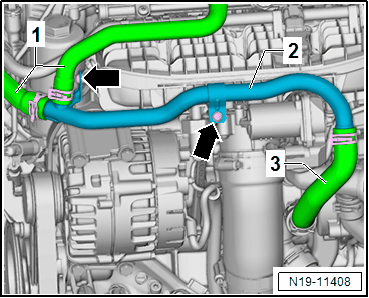

-- Clamp off the coolant hoses -1- and -3- with Hose Clamps - Up To 25mm:3094 .

-- Loosen the clamps and remove the coolant hoses.

-- Remove the bolts -arrows- and remove the coolant pipe -2-.
